An open Sonation sound insulation hood. Next to it a pump on an oil pan. In addition, various Sonation sound insulation hoods lined up.

Sound insulation for vacuum pumps

Thanks to these sound protection hoods, the noise disturbance at the workplace is reduced to a minimum.
With the various models almost any device can be insulated.

The SSH Series

These sound protection hoods are designed for the insulation of backing pumps, as they are often used in analytical laboratories. Due to the variable concept and the different types, almost all pumps can be insulated.

Learn how Sonation products can improve your lab environment and how they are manufactured in our video.

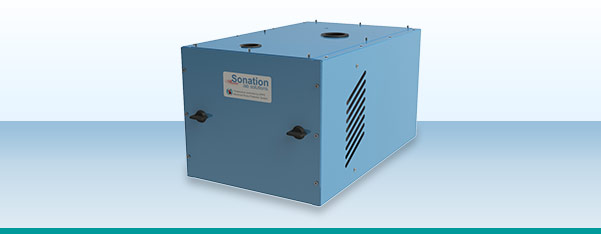

Sonation acoustic enclosure for vacuum pumps - Model SSH07

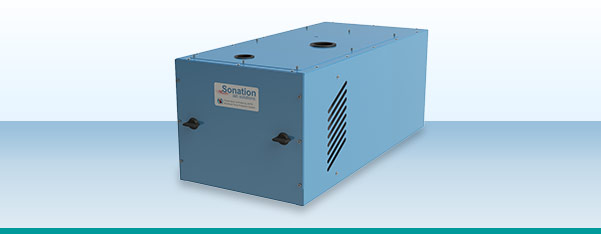

Sonation acoustic enclosure for vacuum pumps - Model SSH11

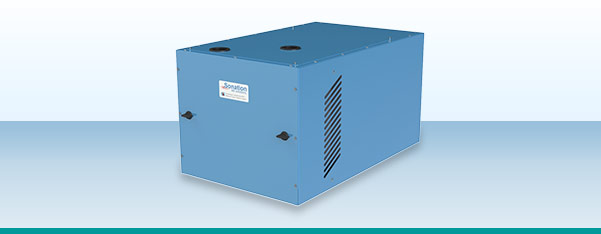

Sonation acoustic enclosure for vacuum pumps - Model SSH35

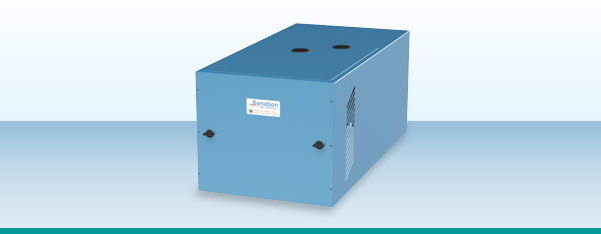

Sonation acoustic enclosure for vacuum pumps - Model SSH36

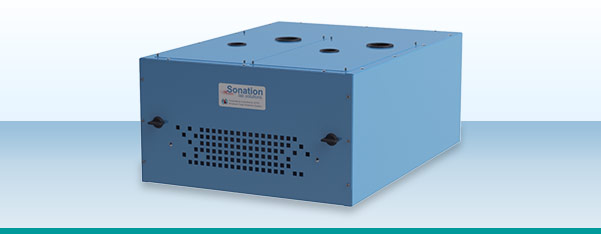

Sonation acoustic enclosure for vacuum pumps - Model SSH22

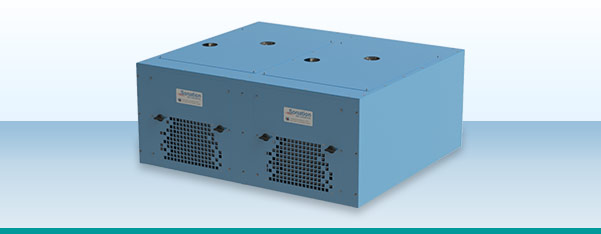

Sonation acoustic enclosure for vacuum pumps - Model SSH70

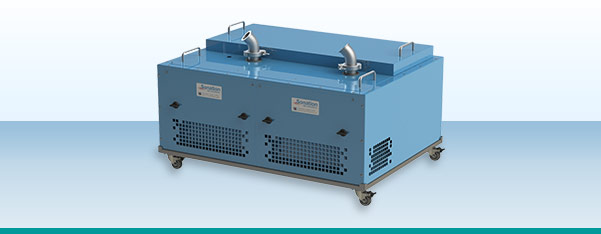

Sonation acoustic enclosure for vacuum pumps - Model SSH-LU
Sonation acoustic enclosure for vacuum pumps - Model SSH-ECL
Accessories for Sonation sound enclosures. An external display for APPS systems, a flange kit and an oil leak sensor.
Noise protection in the workplace is becoming increasingly important. Whereas laboratories used to be rather quiet workplaces, they now contain a large number of devices that can cause immense noise levels. The most common sources are vacuum pumps, ultrasonic cleaning devices and water coolers. In the worst case, the noise can have a detrimental effect on health. But even lower noise levels significantly impair the ability to concentrate. Especially in scientific work, however, a high level of concentration is crucial. Sonation offers appropriate sound insulation solutions for all common noise sources in the laboratory.
With the different models, almost any device can be insulated. If a device does not fit into one of the series products, special designs with customer-specific dimensions are also possible.

General information

The temperature and operating data monitoring module APPS (Active Pump Protection System) enables you to perfectly protect your sensitive and important equipment. All important operating data such as temperature, current consumption and the function of the fans are constantly monitored. In case of an error, an optical and acoustic warning is given.

Try before buy
We will gladly supply you with a demonstration unit to try out. If you are not satisfied with the sound protection hood, you can return it without any further obligations.


The insulation material used is oil and water repellent as well as flame retardant according to FMVSS 302 and DIN 75 200.

Ventilation and cooling

Fans trimmed for noise minimization are used to dissipate the pump waste heat. The air ducting inside the box is designed to provide optimum cooling for the pump, yet prevent sound from entering through the air inlet and outlet openings.

Sound insulation

The sound reduction is up to 16dB(A) which corresponds to a reduction of about 80% of the perceived loudness.


To gain access to the pump, e.g. to read the oil level, the front can be removed and reattached with a flick of the wrist using quick-release fasteners.


The sound protection hoods are equipped with pump-specific cover plates. These cover plates allow the sound protection hood to be adapted to the respective pump type. If a different pump is to be insulated, only the cover plate needs to be replaced. Thanks to magnetic locking, the cover plates can be removed quickly without tools.

Flange kits

With some sound protection hoods, it makes sense to extend the pump connections for vacuum and/or exhaust connections. This allows attachments such as oil mist filters or similar to be connected outside the sound protection hood. For this purpose, we offer flange kits in various sizes and lengths.

Graphic showing the noise of a backing pump broken down into the individual frequencies
Left picture without sound protection hood - Right picture with sound protection hood

Comparison of noise

The two pictures show the noise of a backing pump broken down into the individual frequencies. The left picture shows the noise without sound protection hood, the right picture the significantly reduced noise with sound protection hood.

Custom solutions for special requirements

In addition to many standard models in different sizes and with different features, we also offer custom designs entirely according to your wishes and the requirements of your project. If you have any question about this or would like to discuss an already specific request with us, please contact us or send us an inquiry directly. In direct consultation with you we will find a customized solution.
